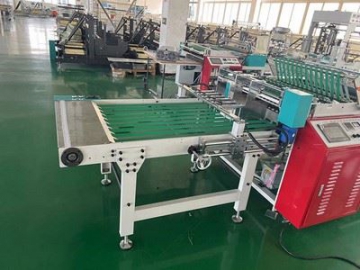

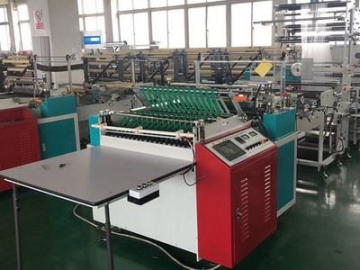

Multifunctional Computer Control Heat Cutting Side Sealing Machine, DRQ-G
Kostenvoranschlag erhalten
This Side sealing cutting bag making machine is suitable for heat cutting and side sealing printed or without printed plastic film (OPP, PP, PE, PET), it is a kind of ideal equipment for making garment bag, towel bag, bread bag and cosmetic bag, etc
Features
- The whole machine adopts microcomputer control and material pulling by step motor (option: Servo motor control system)
- With the functions: length positioning, photocell tracking, automatic stop when lose tracking mark.
- Add double side adhesive tape in same process, automatic punching.
- Heat dot sealing, automatic constant control temperature, with firm and smooth sealing.
- Tube film edge cutting, bag top flap folding, bottom insert, heat pressing.
- Ultrasonic embossing, pearlized film inserting function.
Specification
| Model | DRQ500G | DRQ600G | DRQ700G | DRQ800G | DRQ1000G |
| Bag length | 50~700mm | 50~700mm | 50~700mm | 50~700mm | 50~700mm |
| Max width | 500mm | 600mm | 700mm | 800mm | 1000mm |
| Speed | 60~200pcs/min depend on bag making size and material | ||||
| Total power | 3.5kw | 4kw | 5kw | 5.5kw | 6kw |
| Dimension | 3.7x1.2x1.5m | 3.7x1.3x1.5m | 3.7x1.4x1.5m | 3.7x1.5x1.8m | 3.7x1.7x1.8m |
| Weight | 800kg | 850kg | 900kg | 950kg | 1000kg |
