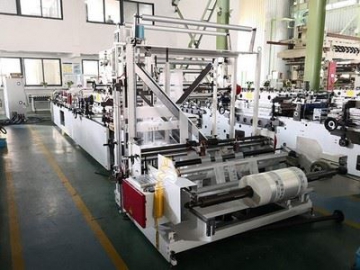

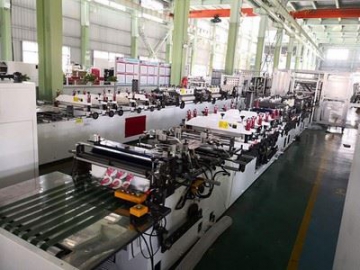

Three Side Sealing Bag Making Machine, 400A

Three Side Sealing Bag Making Machine, 400A
Three Side Sealing Bag Making Machine, 400A
Three Side Sealing Bag Making Machine, 400A
Kostenvoranschlag erhalten

This three side & central sealing bag making machine is for making 3 side sealing, central sealing and central sealing with gusset bag.

Specification
Model
400A
500A
600A
Unwind Width 800mm 1000mm 1200mm
Pouch Making Height 70-380mm× N (N=SKIP≤6)
Pouch Making Width 3 side seal 70-380mm 70-480mm 70-580mm
Central seal 100-350mm 100-400mm 100-450mm
Central seal with gusset 100-230mm(G=60×2) 100-280mm(G=60×2) 100-330mm(G=60×2)
Speed 100-170pcs/min 100-170pcs/min 100-170pcs/min
Line Speed 35m/min 35m/min 35m/min
Total power 24kw 26kw 34kw
Weight 3500kg 3850kg 4300kg
Overall Dimension 8×1.75×1.8m 8×1.95×1.8m 8×2.1×1.8m
