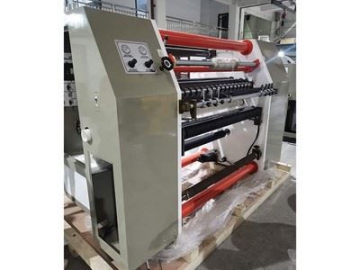

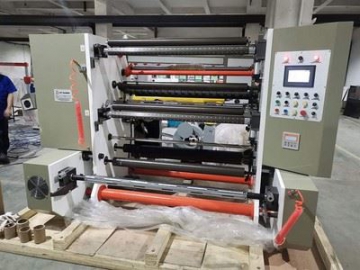

PLC Control High Speed Automatic Slitting Machine, FQL
Kostenvoranschlag erhalten
This Slitting Machine suits to the slitting of various ultra-large type coiled materials, such as paper, glass paper, aluminum-foil paper, adhesive sticker, film (PVC, OPP, PET, CPP) for flexible packaging industry. It has round knife and razor knife, respectively for paper slitting and film slitting. It has compact structure and convenient operation with unwinder and rewinders on same side.
Features
- The unwinding system adopts automatic web-guiding system.
- PLC and touch screen control
- Round blade and razor blade slitting device
- Rewinding pressing roller self-weight lay-on type
- With cantilever type rewinding structure
Specification
Model | FQL1000 | FQL1300 |
Max unwinding diameter | ∮600mm, Paper cone: ∮76mm | ∮600mm, Paper cone: ∮76mm |
Max unwinding width | 1050mm | 1350mm |
Max rewinding diameter | ∮450mm, paper core: ∮3" | ∮450mm, paper core: ∮3" |
Rewinding width | 40~1000mm | 40~1300mm |
Max slitting speed | 270m/min | 270m/min |
Slitting thickness | 10~75um (razor blade); 100~350um (disc blade) | |
Slitting precision | ±0.15mm | ±0.15mm |
Automatic tension control range | 3~30kg | 3~30kg |
Total power | 4.5kw | 4.5kw |
Machine weight | 2800kg | 3000kg |
Overall dimension | 1500x2300x1500mm | 1500x2600x1500mm |
