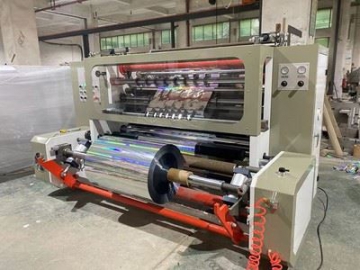

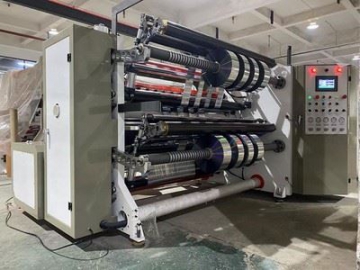

High Speed Slitting Machine (Pneumatic Loading), DFQ-A
Kostenvoranschlag erhalten
This High Speed Slitting Rewinding Machine suits to the slitting of various ultra-large type coiled materials, such as paper, glass paper, aluminum-foil paper, aluminum foil, adhesive sticker, film (PVC, OPP, PET, CPP) for flexible packaging industry. It can slit and rewind different width of roll materials, which is equipped with PLC control, LPC or EPC web-guiding system. It has round knife and razor knife, respectively for paper slitting and film slitting.
Features
- The unwinding system can with LPC or EPC full automatic web-guiding system.
- PLC and touch screen control
- Round blade and razor blade slitting device
- Guiding roller with imported and China best brand bearing
- Rewinding pressing roller with constant pressing structure to ensure the stable rewinding.
- User can choose unloading shelf system according need(option)
- With cantilever type rewinding structure
- Unwinder manual loading structure
- Rewinding by Differential slip shaft(option)
- YASKAWA Brand Frequency Converter for motor speed regulation(option)
Specification
Model | DFQ-A1 | DFQ-A2 | DFQ-A3 |
Max.unwinding diameter | ¢600mm | ¢600mm | ¢600mm |
Max.rewinding diameter | ¢500mm | ¢500mm | ¢500mm |
Max. width | 1100mm or 1300mm | ||
Min. slitting width | 50mm | 50mm | 50mm |
Web guiding control | Photocell | Photocell | Photocell |
Precision | ≤±0.5mm | ≤±0.5mm | ≤±0.5mm |
Main driven system | Single motor | Double motor | Three motor |
Control style | PLC touch screen | PLC touch screen | PLC touch screen |
Tension control style | Taper automatic regulation | ||
Mechanical speed | 0-250m/min | 0-350m/min | 0-350m/min |
Unwinding shaft | Air shaft | Air shaft | Air shaft |
Rewinding shaft | Air shaft | Differential slip shaft | Air shaft(standard) or Differential slip shaft (option) |
Weight | About 2500kg | About 3000kg | About 3000kg |
