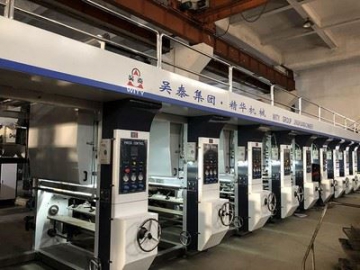

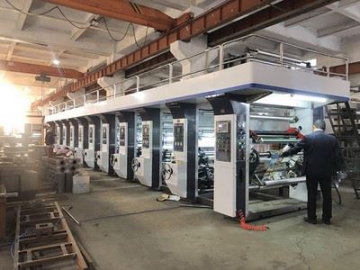

Automatic Color Register Rotogravure Printing Machine, YAD-A2

Kostenvoranschlag erhalten

Über uns: http://wity-machinery.com/2-1-gravure-printing-2.html

Gravure printing machine, a type packaging converting machinery, is suitable for printing many kinds of reel materials, for example, plastic film and paper sheet.

Features

Three-motor tension control in closed loop

Computerized register, pneumatic scraper, frequency control

Stable tension, accurate register, high efficiency, easy operation

Double-air shaft in rewinding, high speed automatic material cutting and roll changing without stopping the machine

Double-air shaft in unwinding, semi-automatic cutting and roll changing

Air cooling device

Water cooling device for option

Float roll type double-cylinder embossing

Shaftless imposition

Double-layer cycle hot-air oven for drying

Centralize exhaust device

Computer register system (brand chosen by clients)

Still image system (brand chosen by clients)

Obverse and inverse double-side printing device can be addled upon request

Film tension adopts three-motor synchronous system (main motor, unwinding traction, rewinding traction)

Five-motor or seven-motor tension synchronous control system and obverse and inverse double-side computer register mechanism are also available to meet customers' requirements.

Specification

Model	YAD-8800A2	YAD-81100A2
Max. printing width	800mm	1100mm
Paper core diameter	76mm	76mm
Unwinding roller diameter	600mm	600mm
Printing cylinder diameter	110-300mm	110-300mm
Color register precision	±0.12mm	±0.12mm
Max. working speed	150m/min	150m/min
Overall dimension	14500×2150×2850mm	14500×2450×2850mm
Total power	135kW	155kW
