Automatic Register Rotogravure Printing Machine (Rotogravure Press), YAD-A5 Manufacturer

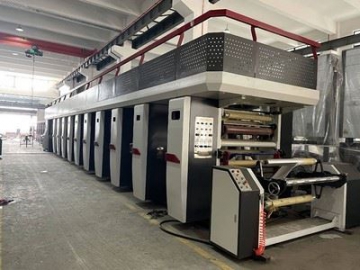

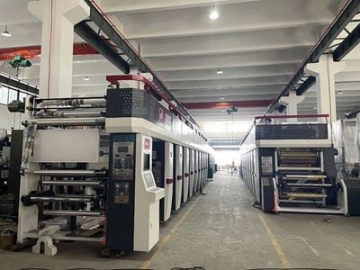

Automatic Register Rotogravure Printing Machine (Rotogravure Press), YAD-A5

Kostenvoranschlag erhalten

Über uns: http://wity-machinery.com/2-1-gravure-printing-1.html

The auto color register rotogravure printing machine is designed for high quality multi-color printing operations on all types of plastic and paper roll materials.
Note: optional double sided printing structure, horizontal color register structure, water cooling device, etc.

Features

Independent unwinder and rewinder

Unwinding and rewinding AB shaft for the automatic receiving of material for non-stop printing

Air-cooling device (optional water cooling system)

Float arm type double cylinder printing press roll

Pneumatic type shaft-less cylinder loading structure

Double room type air cycling dryer

External type heating structure

Video image picture system

Independent unit structure

Specification

Model	YAD-8800A5	YAD-81100A5
Color	8 color	8 color
Printing width	800mm	1100mm
Paper core diameter	¢76mm	¢76mm
Material roll diameter	¢600mm	¢600mm
Printing plate cylinder diameter	¢100~300	¢100~300
Register precision	±0.12mm	±0.12mm
Max.speed	160m/min	160m/min
Total power	135kw	160kw
Overall dimension	16500x2650x2850mm	16500x2950x2850mm
Weight	18000kg	21000kg
