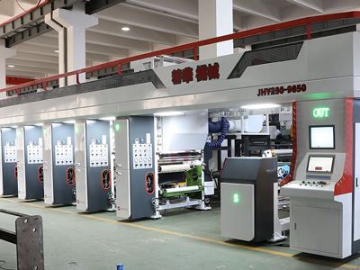

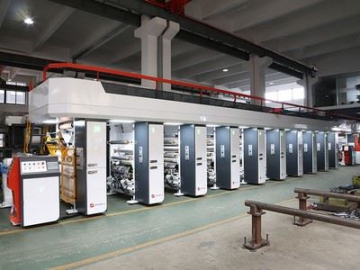

Automatic Register Rotogravure Printing Machine (Rotogravure Press), YAD-K3

Kostenvoranschlag erhalten

Über uns: http://wity-machinery.com/2-1-gravure-printing-5.html

The Auto Register Rotogravure Printing Machine, YAD-K3 is designed for cost effective, automatically controlled high quality printing operations. Our rotogravure machines are suitable for printing on a variety of different plastic and paper materials.
Note: optional horizontal color register structure, double sided printing structure, electronic transmission structure

Features

Independent heavy duty type frame

Large gear box for shaft-less plate cylinder loading

Unwinding and rewinding with double roll non-stop material roll changing

Four floating rollers and seven motor closed loops for tension control

High output speed with incredible precision

Water and air cooling systems

Double screw rod longitudinal auto color register

Three direction adjustable double shaft pneumatic control scraping blade (movement: ±6mm)

External type independent heating system

Touch screen controller for tension controlling

High static picture and precision color register system

Specification

Model	YAD-8800K3	YAD-81100K3
Inner diameter of core	76mm	76mm
Diameter of material	600mm	600mm
Diameter of printing plate	100-300mm	100-300mm
Max. printing width	800mm	1100mm
Register precision	0.08mm	0.08mm
Max. speed	260m/min	260m/min
Overall dimensions(mm)	16225x2495x2965	16225x2895x2965
Total power	155kw	180kw
Weight	23000kg	28000kg
