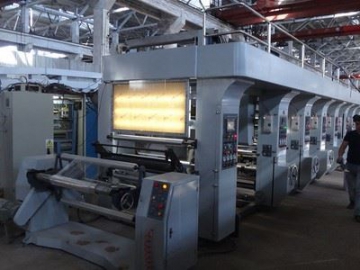

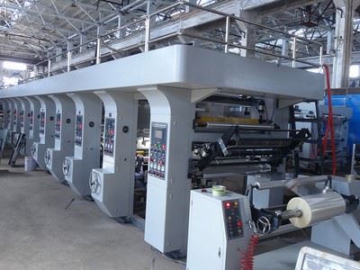

Auto Color Register Rotogravure Machine (Rotogravure Printer), YAD-A3 Manufacturer

Auto Color Register Rotogravure Machine (Rotogravure Printer), YAD-A3

Kostenvoranschlag erhalten

Über uns: http://wity-machinery.com/2-1-gravure-printing-3.html

The auto register rotogravure machine is a gravure printer commonly used for multi-color printing on a variety of different plastic and paper roll materials.
Note: optional double sided printing structure, horizontal color register structure, water cooling device, etc.

Features

Independent unwinder and rewinder

Unwinding and rewinding AB shaft for the automatic receiving of material for non-stop printing

Air-cooling device (optional water cooling system)

Float arm type double cylinder printing press roll

Pneumatic type shaft-less cylinder loading structure

Double room type air cycling dryer

External type heating structure

Video image picture system

Independent unit structure

Specification

Model	YAD-8800A3	YAD-81100A3
Color	8 color	8 color
Printing width	800mm	1100mm
Paper core diameter	¢76mm	¢76mm
Material roll diameter	¢600mm	¢600mm
Printing plate cylinder diameter	¢100~300	¢100~300
Precision of register	±0.15mm	±0.15mm
Max. speed	150m/min	150m/min
Printing speed	60~120m/min	60~120m/min
Total power	135kw	155kw
Overall dimension	16500x2650x2850mm	16500x2950x2850mm
Weight	18000kg	21000kg
