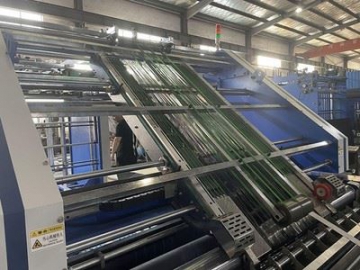

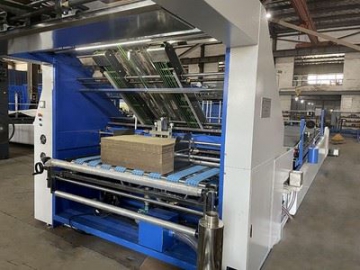

High Speed Automatic Carton Laminating Machine FMZ-1450/1700 (Flute Laminator)

High Speed Automatic Carton Laminating Machine FMZ-1450/1700 (Flute Laminator)
High Speed Automatic Carton Laminating Machine FMZ-1450/1700 (Flute Laminator)
High Speed Automatic Carton Laminating Machine FMZ-1450/1700 (Flute Laminator)
High Speed Automatic Carton Laminating Machine FMZ-1450/1700 (Flute Laminator)
Kostenvoranschlag erhalten

FMZ-1260/1450/1700 high speed automatic carton laminating machine adopts surface paper and bottom paper automatic feeding system. It is suitable for color printing paper and corrugated board’s automatic pasting.

Features
  • Special front location with high accuracy
  • Use overlapping feeding style, making paper conveying more stable
  • Adopting cutting-edge PLC tracking technology, it can automatically adjust the relevant parameters according to the size of paper, keeping the machine in the best state
  • Bottom paper feeding adopts rotary telescopic frame, more suitable for warped corrugated paperboard.
  • The feeder equips pre-feeding device to reduce the stopping time of machine and improve productivity.
  • Siemens PLC control system adopted can simplify electric equipment's structure for stable and reliable control
  • Adopt frequency-conversion speed regulation system for infinitely variable speed without shutdown
  • Automatically display the state of operation
  • With fault alarm function
Application

Adopting surface paper and bottom paper automatic feeding system, this laminator is ideally suited for automatic pasting of color printing paper and corrugated board

Specification
Model
FMZ-1260
FMZ-1450
FMZ-1700
Max laminating size 1260×1300mm 1450×1300mm 1700×1500mm
Min laminating size 400×400mm 400×400mm 400×400mm
Laminating precision ±1mm ±1mm ±1mm
Laminating speed 6000sheets/h 5000 sheets/h 4000 sheets/h
Paper thickness 250-450g/㎡ 250-450g/㎡ 250-450g/㎡
Type of bottom paper (corrugated board) A.B.C.D.E≤7mm A.B.C.D.E≤7mm A.B.C.D.E≤7mm
Total power 15kw 15kw 15kw
Overall dimensions(LxWxH) 14.20×2.22×2.68m 14.20×2.22×2.68m 14.20×2.22×2.68m
