Flower Sleeve Bag Making Machine, DRQ-F Manufacturer

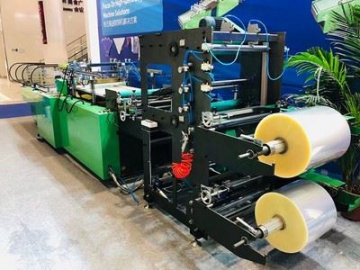

Flower Sleeve Bag Making Machine, DRQ-F

Kostenvoranschlag erhalten

Über uns: http://wity-machinery.com/3-5-bag-making3-3.html

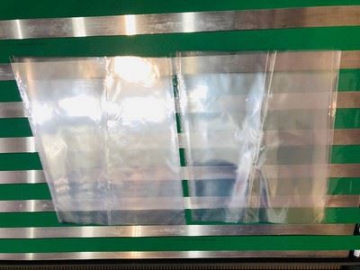

This Flower sleeve bag making machine is suitable for various kind of material such as BOPP,CPP , LDPE, HDPE, etc. It is the professional equipment which is used for making such special-shaped bags as flower bags,umbrella bags,tie bags,sandwich bags and so on.

Features

Man-machine interface, touch screen operation, PLC control, easy to operate. With the functions of photoelectric tracking, fixed length setting, automatic counting and out of step alarming.
Dual servo motors driven, driving system adopts 4 sets of frequency inverters and imported three-phase motor.
Printing bag tracking using imported photoelectric sensor, precise control of bag size.
Dual unwinders with air shafts unwinding, magnetic powder brake control, and with a set of EPC web-guide control system.
The machine equipped with pneumatic hole puncher, water-cooling device and perforation device.
Adopt 3m imported silicone plate driving, long service life and well-down bag making.

Specification

Model	DRQ-F600	DRQ-F800	DRQ-F1000	DRQ-F1200
Bag Width	550mm	750mm	950mm	1150
Bag Length	800mm	800mm	800mm	800mm
Speed	30-100PCS/MIN	30-100PCS/MIN	30-80PCS/MIN	30-80PCS/MIN
Film thickness	0.01-0.2mm	0.01-0.2mm	0.01-0.2mm	0.01-0.2mm
Total Power	12KW	14KW	15KW	20KW
Power supply	380V/50HZ	380V/50HZ	380V/50HZ	380V/50HZ
Weight	2000KG	3000KG	3500KG	4400KG
Overall Dimension	6540×1300×1500mm	6540×1500×1500mm	6540×1700×1500mm	6540×1900×1500mm
