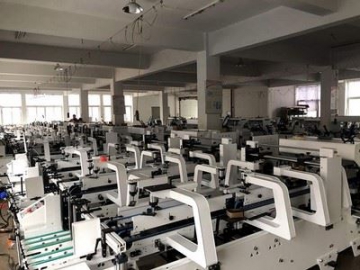

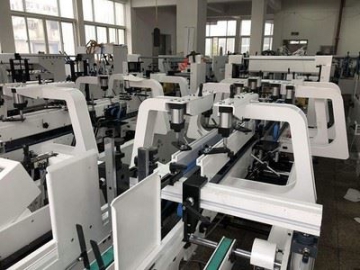

Automatic Pre-fold and Lock Bottom Folder Gluer, SHH800AG

Automatic Pre-fold and Lock Bottom Folder Gluer, SHH800AG
Automatic Pre-fold and Lock Bottom Folder Gluer, SHH800AG
Automatic Pre-fold and Lock Bottom Folder Gluer, SHH800AG
Kostenvoranschlag erhalten
Über uns: http://wity-machinery.com/1-9-2-folding-gluing-machine.html

The folder and gluer is designed with folding system and bottom locking system. The folding gluing equipment is widely used for making carton box applied in foodstuff industry, pharmaceutical industry, cosmetic industry, and stationery industry. It can process pre-folding angle of 180 degree and 135 degree, and it can make bottom-locked box by automatically gluing and forming, as well be used for the special-shaped cartons.

Specification
Model SHH-800AG
Paper Material Cardboard 200-800g E-fluteE/F-fluteF
Max. Liner speed Max. 220 meter/minute
Feeding way Automatically and continuously feeding
Way of folding Fold 1 and fold 3 are 180°and 135° Fold 2 and fold 4 are 180° Bottom folded and glued
Glue Material Water-base cold glue
Electric power 7KW 380V 50HZ 3P
Weight 2700KG
Over dimension 11000 x1300x 1400mm
