High Speed Carton Box Folding and Gluing Machine (4&6 Corners Boxes Folder Gluer), HZH-FBP
Kostenvoranschlag erhalten

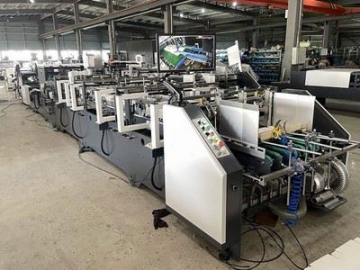

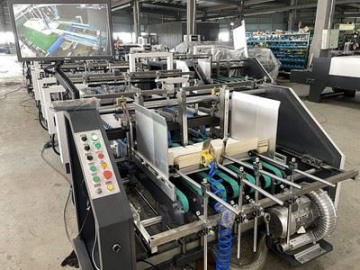

The carton box folding and gluing machine HZH-FBP series can work with various materials such as cardboards and flute. It can be equipped with pre-folding and crash lock bottom device, 4 corners and 6 corners opposite finger attachment.
Features
- The frame base is made of integrated steel plate for good rigidity
- Compact in structure and convenient to operate
- High production efficiency (maximum speed of 200m/min), reliable products
- Import circle arc tooth synchronous belt to ensure stable transmission, low noise and long service life
- This kind of packaging machine can be used for cartons of various shapes and sizes
Specification
| Model | HZH580FBP | HZH780FBP | HZH980FBP | HZH1100FBP | HZH1380FBP |
| Material | Cardboard250~600gsm | Cardboard 250~600gsm or E flute corrugated board | |||
| Max linear speed | 240m/min | 200m/min | 200m/min | 200m/min | 200m/min |
| Cataplasm (glue) | Water-based cold glue | ||||
| Power supply | 380V 3P 50Hz | 380V 3P 50Hz | 380V 3P 50Hz | 380V 3P 50Hz | 380V 3P 50Hz |
| Main motor power | 7.5KW | 7.5KW | 11KW | 11KW | 11KW |
| Total power | 9.6KW | 10.6KW | 14.1KW | 14.1KW | 14.1KW |
| Overall dimension | 11×1.3×1.7m | 11×1.3×1.7m | 14×1.3×1.9m | 14×1.3×1.9m | 14×1.6×2.1m |
| Weight | 4500kg | 5000kg | 6500kg | 7000kg | 7500kg |
Carton Specifications
Normal side gluing carton | Position | HZH580 | HZH780 | HZH980 | HZH1100 | HZH1380 | |
| A | MAX | 580 | 780 | 980 | 1100 | 1380 |
| MIN | 80 | 160 | 160 | 180 | 180 | |
| B | MAX | 580 | 780 | 980 | 1100 | 1380 |
| MIN | 70 | 100 | 100 | 120 | 120 | |
| C | MAX | 290 | 390 | 490 | 550 | 690 |
| MIN | 40 | 80 | 80 | 90 | 90 | |
| D | MAX | 580 | 780 | 980 | 1100 | 1380 |
| MIN | 80 | 160 | 160 | 180 | 180 | |
| E MIN | 10 | 15 | 20 | 20 | 20 | |
| F MIN | 7 | 10 | 10 | 10 | 10 | |
| Position | HZH580 | HZH780 | HZH980 | HZH1100 | HZH1380 | |
| A | MAX | 520 | 700 | 900 | 1000 | 1250 |
| MIN | 160 | 200 | 220 | 220 | 220 | |
| B | MAX | 580 | 780 | 980 | 1100 | 1380 |
| MIN | 100 | 150 | 200 | 200 | 200 | |
| C | MAX | 260 | 350 | 450 | 500 | 625 |
| MIN | 80 | 100 | 110 | 110 | 110 | |
| D | MAX | 580 | 780 | 980 | 1100 | 1380 |
| MIN | 80 | 160 | 160 | 180 | 180 | |
| E | MAX | |||||
| MIN | 22 | 25 | 25 | 25 | 25 | |
| F | MAX | Refer to E | Refer to E | Refer to E | Refer to E | Refer to E |
| MIN | 7 | 10 | 10 | 10 | 10 | |
| G MIN | Refer to E | Refer to E | Refer to E | Refer to E | Refer to E | |
| Position | HZH580 | HZH780 | HZH980 | HZH1100 | HZH1380 | |
| A | MAX | 580 | 780 | 980 | 1100 | 1380 |
| MIN | 80 | 140 | 160 | 180 | 200 | |
| B | MAX | 580 | 780 | 980 | 1100 | 1380 |
| MIN | 120 | 160 | 160 | 160 | 160 | |
| C | MAX | 380 | 480 | 780 | 780 | 880 |
| MIN | 120 | 160 | 160 | 160 | 200 | |
| Position | A | B | C | D | E | |
| 1100 | Max | 1100(mm) | 100(mm) | 500(mm) | 900(mm) | 640mm |
| Min | 420(mm) | 40(mm) | 100(mm) | 180(mm) | 100(mm) | |
| 980 | Max | 980(mm) | 100(mm) | 450(mm) | 780(mm) | 540(mm) |
| Min | 420(mm) | 40(mm) | 100(mm) | 180(mm) | 100(mm) | |
| 780 | Max | 780(mm) | 100(mm) | 330(mm) | 580(mm) | 450(mm) |
| Min | 420(mm) | 40(mm) | 100(mm) | 180(mm) | 100(mm) | |
| Position | A | B | C | D | E | |
| 1100 | Max | 1100(mm) | 100(mm) | 980(mm) | 980(mm) | 900(mm) |
| Min | 180(mm) | 40(mm) | 40(mm) | 100(mm) | 180(mm) | |
| 980 | Max | 980(mm) | 100(mm) | 780(mm) | 780(mm) | 700(mm) |
| Min | 180(mm) | 40(mm) | 100(mm) | 180(mm) | 100(mm) | |
| 780 | Max | 780(mm) | 100(mm) | 580(mm) | 580(mm) | 500(mm) |
| Min | 180(mm) | 40(mm) | 100(mm) | 180(mm) | 100(mm) | |
