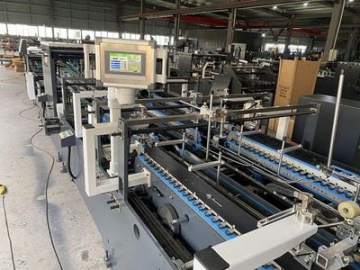

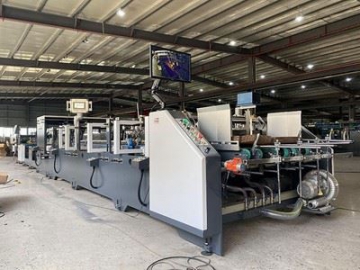

High Speed Carton Box Folding and Gluing Machine, HZH-FB
Kostenvoranschlag erhalten
This folder gluer is suitable for carton boxes of various shapes and sizes. It is equipped with screw rod what is easy to operate for one single operator.
Features
- The frame base made of steel plate has good rigidity
- The design of power transmission adopt heavy duty timing belt, high efficiency. Low noise, durability and easy to maintain.
- High production efficiency (maximum speed of 200m/min)
- Adopt imported circle arc tooth synchronous belt, resulting in accurate transmission, low noise and long service life
Specification
Model | HZH580FB | HZH780FB | HZH980FB | HZH1100FB | HZH1380FB |
Material | Cardboard250~600gsm | Cardboard 250~600gsm or E flute corrugated board | |||
Max linear speed | 240m/min | 200m/min | 200m/min | 200m/min | 200m/min |
Cataplasm (glue) | Water-based cold glue | ||||
Power supply | 380V 3P 50Hz | 380V 3P 50Hz | 380V 3P 50Hz | 380V 3P 50Hz | 380V 3P 50Hz |
Main motor power | 7.5KW | 7.5KW | 11KW | 11KW | 11KW |
Total power | 9.6KW | 10.6KW | 14.1KW | 14.1KW | 14.1KW |
Overall dimension | 11×1.3×1.7m | 11×1.3×1.7m | 14×1.3×1.9m | 14×1.3×1.9m | 14×1.6×2.1m |
Weight | 4500kg | 5000kg | 6500kg | 7000kg | 7500kg |
Carton Specifications
Normal side gluing carton Position | HZH580 | HZH780 | HZH980 | HZH1100 | HZH1380 | |
A | MAX | 580 | 780 | 980 | 1100 | 1380 |
MIN | 80 | 160 | 160 | 180 | 180 | |
B | MAX | 580 | 780 | 980 | 1100 | 1380 |
MIN | 70 | 100 | 100 | 120 | 120 | |
C | MAX | 290 | 390 | 490 | 550 | 690 |
MIN | 40 | 80 | 80 | 90 | 90 | |
D | MAX | 580 | 780 | 980 | 1100 | 1380 |
MIN | 80 | 160 | 160 | 180 | 180 | |
E MIN | 10 | 15 | 20 | 20 | 20 | |
F MIN | 7 | 10 | 10 | 10 | 10 |
Position | HZH580 | HZH780 | HZH980 | HZH1100 | HZH1380 | |
A | MAX | 520 | 700 | 900 | 1000 | 1250 |
MIN | 160 | 200 | 220 | 220 | 220 | |
B | MAX | 580 | 780 | 980 | 1100 | 1380 |
MIN | 100 | 150 | 200 | 200 | 200 | |
C | MAX | 260 | 350 | 450 | 500 | 625 |
MIN | 80 | 100 | 110 | 110 | 110 | |
D | MAX | 580 | 780 | 980 | 1100 | 1380 |
MIN | 80 | 160 | 160 | 180 | 180 | |
E | MAX | |||||
MIN | 22 | 25 | 25 | 25 | 25 | |
F | MAX | Refer to E | Refer to E | Refer to E | Refer to E | Refer to E |
MIN | 7 | 10 | 10 | 10 | 10 | |
G MIN | Refer to E | Refer to E | Refer to E | Refer to E | Refer to E |
Position | HZH580 | HZH780 | HZH980 | HZH1100 | HZH1380 | |
A | MAX | 580 | 780 | 980 | 1100 | 1380 |
MIN | 80 | 140 | 160 | 180 | 200 | |
B | MAX | 580 | 780 | 980 | 1100 | 1380 |
MIN | 120 | 160 | 160 | 160 | 160 | |
C | MAX | 380 | 480 | 780 | 780 | 880 |
MIN | 120 | 160 | 160 | 160 | 200 |
