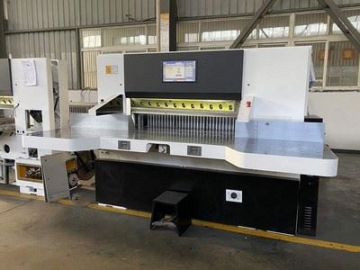

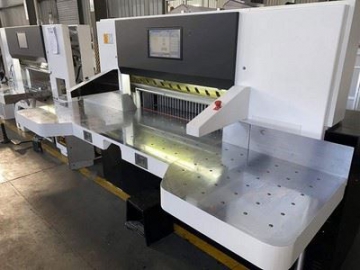

Programmable Paper Cutting Machine (Paper Cutter)
Kostenvoranschlag erhalten
The programmable paper cutting machine is configured with a Panasonic servo motor and a 16 inch display. It has full touch display screen. And this paper cutter is equipped with double hydraulic system which is composed of two hydraulic circuits and inside electronic knife locker, which can effectively avoid knife-sliding.
Features
- Chrome-plated for main worktable and side tables, and has the device of air cushion, which is convenient for backgauge running.
- It adopts high stiffness linear guides and high precision gapless lead screw to ensure backgauge accuracy and effectively improve the anti-impact capability against unidirectional impact.
Specification
| Model | Unit | 92 | 115 | 130 | 137 | 168 | 188 |
| Max.Cutting Width | cm | 92 | 115 | 130 | 137 | 168 | 188 |
| inch | 36.2 | 45.3 | 51.2 | 53.9 | 66.1 | 74 | |
| Max.Cutting Length | cm | 92 | 115 | 130 | 145 | 168 | 188 |
| inch | 36.2 | 45.3 | 51.2 | 57.1 | 66.1 | 74 | |
| Max. Cutting Height | mm | 120 | 165 | 165 | 165 | 165 | 165 |
| inch | 4.7 | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 | |
| Min. Cutting Size (without false clam plate) | mm | 25 | 30 | 30 | 30 | 30 | 30 |
| inch | 1 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | |
| Min. Cutting Size (with false clamp plate) | mm | 90 | 90 | 90 | 90 | 90 | 90 |
| inch | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | |
| Front Table Length | cm | 63.2 | 71.5 | 73 | 73 | 75 | 75 |
| inch | 24.9 | 28.1 | 28.7 | 28.7 | 29.5 | 29.5 | |
| Max.Clamp Pressure | N | 30000 | 40000 | 40000 | 45000 | 60000 | 70000 |
| Max. Cutting Speed | time/min | 45 | 46 | 46 | 46 | 46 | 46 |
| Main Motor | KW | 3 | 4 | 4 | 4 | 8.5 | 8.5 |
| Net Weight | Kg | 2300 | 3700 | 3900 | 4100 | 6200 | 6600 |
| Gross Weight | Kg | 2500 | 4100 | 4300 | 4500 | 7000 | 7400 |
| Packing Size(L×W×H) | cm | 228×140×188 | 285×190×210 | 285×190×210 | 310×190×210 | 360×205×220 | 380*205*220 |
