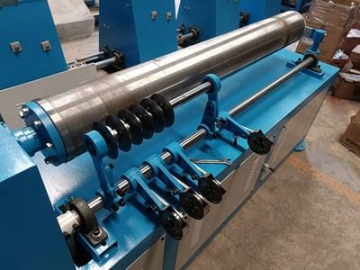

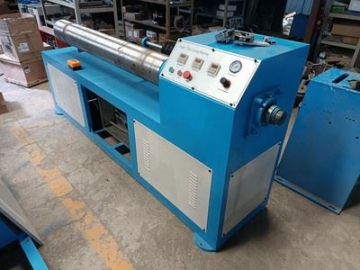

Paper Tube Re-Cutting Machine, Q1-1500
Kostenvoranschlag erhalten
The paper tube re-cutting machine Q1-1500 is applicable for short paper tubes. The paper tube cutting equipment comes with HMI for easy operation. The PLC for the main circuit makes for the stable performance of the automatic paper tube cutter. Thanks to the automatic closing device, automatic paper tube cutting unit, and automatic opening device, it is quite easy for the user to grasp the operating skill of the paper tube cutter.
Features
- With automatic off, automatic folder management, automatic shutdown
- Stable performance and easy operation.
Specification
Tube length | 60-1500mm |
Tube diameter | 50-150mm |
Tube wall-thickness | 1-2mm |
Blade quantity | 6 |
Cutting mode | Rotary cutting |
Loading and unloading | Manual control |
Blade feeding way | Pneumatic |
Operator | 1 person |
Speed controller | Frequency inverter |
Overall dimension | 2400×550×1200mm |
Weight | 500kg |
Verwandte Produkte
Feedback
Andere Produkte
Aktuellste
Mehr
Andere Produkte

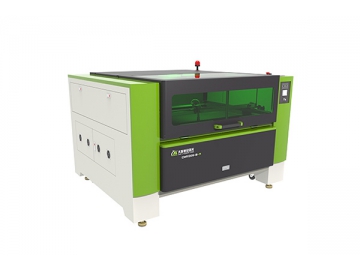

Laserschneidmaschine mit CO2 Laser und automatischer Zuführung 1500×600mm, Schnittwerkzeug CMA1606C-FET-FA
