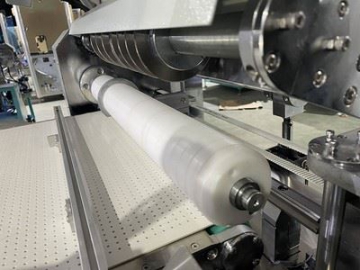

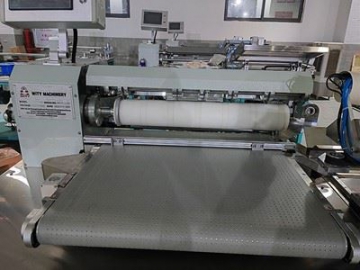

Automatic Paper Tube Labeling and Cutting Machine (with White Glue), WT-580X
Kostenvoranschlag erhalten
This paper can labeling machine adopts water based glue used for gluing label on paper tube. It can be applied to single label or multiple labels at the same time and automatically cut into the required height.
Features
- The operation is simple and easy to adjust, and the mold processing difficulty is low, which is very suitable for the labeling process of small and medium-sized paper can products.
- The use of white latex labeling is not easy to be affected by the processing environment and temperature and can improve the molding effect of the subsequent processing process.
- PLC control system and touch screen are adopted, which is simple and convenient.
Specification
| Model | WT-580X |
| Diameter range | 50-100mm |
| Length range | 50-580mm |
| Label thickness | 105-157g |
| Accuracy | ±0.3-1.0mm |
| Tube in | Automatic |
| Tube out | Automatic |
| Rated power | 3kw |
| Host speed | 0-1400 |
| Machine weight | 500kg |
| Dimensions | 200*104*150cm |
| Power voltage | 220v 50Hz |
| Air pressure | 0.3-0.5kpa |
| Labeling speed | 30-60pcs/min |
| Control method | PLC 7inch touch screen |
| Operator | 1 |
| Blade quantity | 5 pcs |
| Glue type | White latex |
