Paper Tube Labeling Machine, HD-500/650 Manufacturer

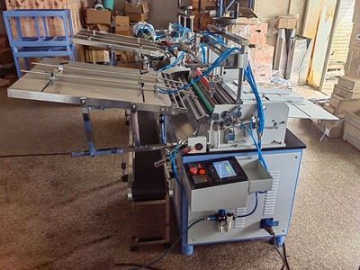

Paper Tube Labeling Machine, HD-500/650

Kostenvoranschlag erhalten

Über uns: http://wity-machinery.com/1-19-1-paper-tube-labeling-machine.html

Paper can labeling machine is particularly used to pasting the paper on any paper pipe shape subjects like, composite can, tea caddy, wine can, and even party poppers, fireworks for packaging.

Features

The rapid cooling of the hot melt adhesive is conducive to the elimination of the upwarp of the label end. So, the label can be perfectly attached to the can body for further processing.
Thanks to the PLC for the paper tube labeling machine, user can set up the parameters on the composite can labeling machine.
An imported clutch and the PU rubber covered roller make for stable label feeding performance of the paper tube machinery.
Installed with automatic temperature controller, the automatic paper tube labeling equipment provides accurate control on the glue temperature.
The double thermal insulation layer for the hot plate of the paper tube labeling machine has optimal heating performance, capable of saving 50% energy for the users.
The default glue thickness can be adjusted easily and accurately, enabling the saving in the consumption of the hot melt adhesive.
Conveniently and practically, both the main glue feeding device and the side glue feeding device are available with this paper tube labeling machine.
The automatic unloading device is conducive to the high productivity of the paper can labeling machine.

Specification

Model	HD-500	HD-650
Paper Tube Diameter	Φ32-200mm	Φ32-200mm
Label Width	60-500mm	60-650mm
Heating Power	3.0kW	3.2kW
Weight	370kg	450kg
Overall Dimension (With unloading guideway)	1070×1050×1500mm 1070×1100×1500mm	1220×1050×1500mm 1220×1100×1500mm
Voltage	220V 1-phase	220V 1-phase
Air Pressure	0.6-0.8MPa	0.6-0.8MPa
Labeling Speed	40m/min	40m/min
