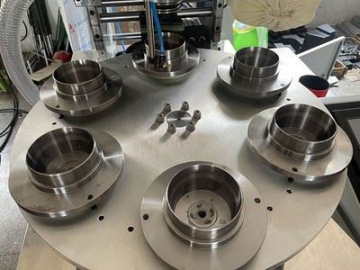

Servo Motor Paper Tube Curling Machine, WT6

Servo Motor Paper Tube Curling Machine, WT6
Servo Motor Paper Tube Curling Machine, WT6
Servo Motor Paper Tube Curling Machine, WT6
Servo Motor Paper Tube Curling Machine, WT6
Kostenvoranschlag erhalten
Über uns: http://wity-machinery.com/1-19-7-servo-motor-paper-tube-curling-machine.html

The servo motor type paper tube curling equips the paper tube curling system by servo motor driven. It has six curling stations and could curl the tube lids accurately. It is applied to paper covers composite cans, calendars cans, tea cans, wine cans, tin covered composite cans, cardboard box curling and edge cover.

Features
  • It is controlled by servo motor and PLC, stable running
  • With 360 degree curling effect
  • Easy to change tools and adjust height
Specification
Diameter range 50-150mm (customized)
Height range 50-400mm
Paper tube wall thickness 0.7-1.5mm
Forming accuracy ±0.3-0.5mm
Rated power 4 kw
Machine net weight 500kg
Gross weight 600kg
Dimensions 1095*8905*1830mm
Power supply 220v 50Hz single phase
Air pressure 0.4-0.6kpa
Molding speed 30-40pcs/min
Main control method PLC
Number of operators 1 person
Verwandte Produkte
Paper Tube Curling and Sealing Machine, CS400
Paper Tube Curling and Sealing Machine, CS400

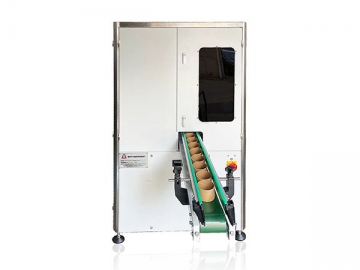

Paper Tube Round Disc Loading and Curling Machine/ Paper Round Box Bottom Disc Inserting and Curling Machine
Paper Tube Round Disc Loading and Curling Machine/ Paper Round Box Bottom Disc Inserting and Curling Machine
Paper Tube Forming Machine (Paper Can Winding Machine)
Paper Tube Forming Machine (Paper Can Winding Machine)
Paper Tube Labeling Machine, HD-500/650
Paper Tube Labeling Machine, HD-500/650
Feedback
Andere Produkte
AC-Motor / DC-Motor, Universalmotor
AC-Motor / DC-Motor, Universalmotor

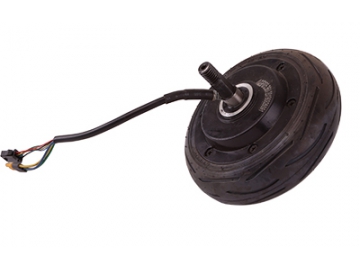

150W Antriebsmotor, bürstenloser DC Motor, PMDC Motor GF075AQH1
150W Antriebsmotor, bürstenloser DC Motor, PMDC Motor GF075AQH1
Elektrisch betätigter Kugelhahn / Kugelhahn elektrisch / Kugelhahn mit Antrieb / Motor-Kugelhahn, BV201
Elektrisch betätigter Kugelhahn / Kugelhahn elektrisch / Kugelhahn mit Antrieb / Motor-Kugelhahn, BV201
Aktuellste
Gussteile aus Edelstahl Gussteile aus Edelstahl metalcasting-service.de
Blisterverpackungen & Klappblister Blisterverpackungen & Klappblister packagings-service.de
Permanentmagnet Mikrowellenzirkulatoren & Isolatoren Permanentmagnet Mikrowellenzirkulatoren & Isolatoren magnet-materials.de
Spinnvlies (S/SS/SSS) Spinnvlies (S/SS/SSS) nonwoven-materials.de
Mehr
Präzisionslager / Genauigkeitslager Präzisionslager / Genauigkeitslager slewing-ringbearing.de
FV70 Mini Stabfeuerzeuge FV70 Mini Stabfeuerzeuge lighter-factory.de
Geschmiedete Alu-Verschraubungen/ Steckverbindungen (besonders leicht) Geschmiedete Alu-Verschraubungen/ Steckverbindungen (besonders leicht) autotubebenders.de
Elektrisch betätigte Absperrklappe, KV401 Elektrisch betätigte Absperrklappe, KV401 plasticsvalves.de
Pizzaofen Pizzaofen zd-drivers.de
Bremssattel Bremssattel auto-brakeparts.de
Andere Produkte
Laboratory Solventless Laminating Machine, SLE-300 Laboratory Solventless Laminating Machine, SLE-300 laminationsolution.de
AC-Motor / DC-Motor, Universalmotor AC-Motor / DC-Motor, Universalmotor motors-shanbo.de
150W Antriebsmotor, bürstenloser DC Motor, PMDC Motor GF075AQH1 150W Antriebsmotor, bürstenloser DC Motor, PMDC Motor GF075AQH1 motors-manufacturer.de

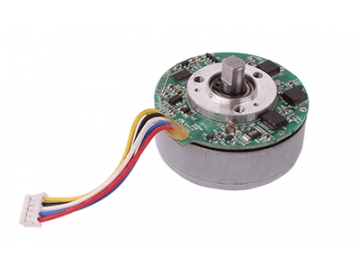

15W Antriebsmotor, bürstenloser DC Motor, PMDC Motor GF033A 15W Antriebsmotor, bürstenloser DC Motor, PMDC Motor GF033A motors-manufacturer.de
200W Antriebsmotor, bürstenloser DC Motor, PMDC Motor TF095CH 200W Antriebsmotor, bürstenloser DC Motor, PMDC Motor TF095CH motors-manufacturer.de

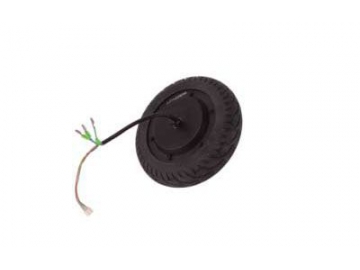

250W Antriebsmotor, bürstenloser DC Motor, PMDC Motor GF105AQH 250W Antriebsmotor, bürstenloser DC Motor, PMDC Motor GF105AQH motors-manufacturer.de
