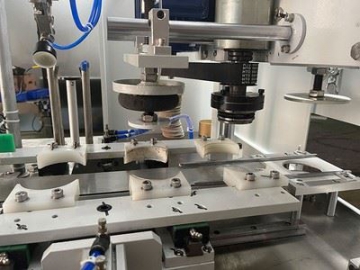

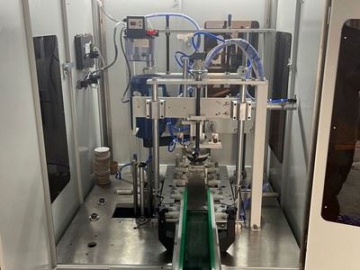

Paper Tube Round Disc Loading and Curling Machine/ Paper Round Box Bottom Disc Inserting and Curling Machine

Paper Tube Round Disc Loading and Curling Machine/ Paper Round Box Bottom Disc Inserting and Curling Machine
Paper Tube Round Disc Loading and Curling Machine/ Paper Round Box Bottom Disc Inserting and Curling Machine
Paper Tube Round Disc Loading and Curling Machine/ Paper Round Box Bottom Disc Inserting and Curling Machine
Kostenvoranschlag erhalten

The paper tube round disc loading and curling machine equips with the automatic round bottom sheet loading and tube curling functions on one machine. It is an ideal accessory machine for the full paper tube production. It is applied to produce tea can, food can, packing can etc.

Features
  • It can combine curling, gluing, disc inserting functions in one line.
  • With automatic and manual modes.
  • It reduces labor power.
Specification
Diameter range 50-150mm
Max height 50-200mm (adjustable by manual)
Paper tube wall thickness 0.8-1.5mm
Forming 360°curling
Rated power 2KW
Power supply 380V/3P/50HZ
Air pressure 0.6mpa-0.8mpa
Max speed 22pcs/min
Main control method PLC, touch screen It can set curling time, speed of conveyor belt, delay time
Number of operators 1 person
Cover With glass cover
Inverter Mitsubishi
Machine weight 350kg
Dimensions L1600*W950*H1725mm
