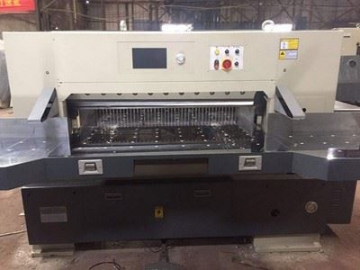

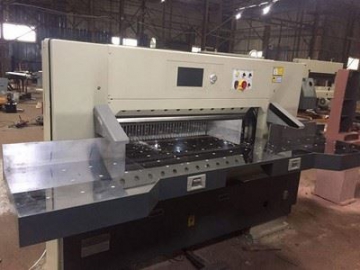

Programmable Paper Cutting Machine (10 Inch Touch Screen)
Kostenvoranschlag erhalten
Paper Cutting Machine is used to cut the printing paper of various kinds, paper products, plastic, thin film, leather, slice of non-ferrous metal, etc. The computer control system for the programmable paper cutting machine is installed with 10 inch colour LCD to display the operating conditions.
Features
- Touch Screen: it adopts 10 inch touch screen color liquid crystal touch screen. It is equipped with imported whole set computer controlling system. The computer can do self-diagnose while malfunction, and do self-protection while wrong operation.
- Double Hydraulic Device: the hydraulic system adopts the Germany advanced technology. Equipped with combined hydraulic valve, double hydraulic controlling structure, it approves hydraulic device greatly. The hydraulic device pass CE certificate.
- Double Guide Device: the paper pusher adopts double linear guide and roller ball screw.,which can prolong the machine use life, and can bear the high speed paper delivering.
- Photo cell: it is equipped with a photo cell safety protection device.
- Over load protection device; convenient knife changing device.
- Worktable chrome treatment: the worktable and side board surface are all adopted chrome treatment to improve the precision and quality of the machine.
- Air ball: air balls are installed in the worktable. The paper sending work will be easy and accurate.
- Cutting controller: both of the user’s hands operate the machine. It can cut paper in one time.
- Electronic knife lock: when the machine is malfunction, the electronic knife lock will lock the knife, and the machine will stop cutting to protect safety.
Specification
Max cutting width | cm/ inch | 92/36.2 | ||
Max cutting length | cm/ inch | 100/39.4 | ||
Max cutting height | cm/ inch | 13/5.1 | ||
Main motor | kw | 3 | ||
Net weight | KG | 2600 | ||
Width of machine | cm | 217 | ||
Length | cm | 226 | ||
Height | cm | 151 | ||
Front table length | cm | 60 | ||
Table height | cm | 89 | ||
Clamp pressure | Min | N | 200 | |
Max | N | 30000 | ||
Knife thickness | cm | 110×12.7×1.27 | ||
Knife max grind thickness | cm | 3 | ||
Smallest cut | Without false clamp | cm/ inch | 2.5/1.0 | |
With false clamp | cm/ inch | 10/3.9 | ||
Cutting speed | Cycles/min | 45 | ||
Packing dimension size | L×W×H cm | 230×137×185 | ||
Voltage | V | 360-400 | ||
Fuse | A | 15 | ||
Wire size | mm2 | 2.5 | ||
Wind pump motor | KW | 0.55 | ||
Paper pusher servo motor | KW | 0.4 |
