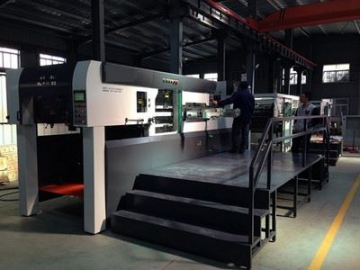

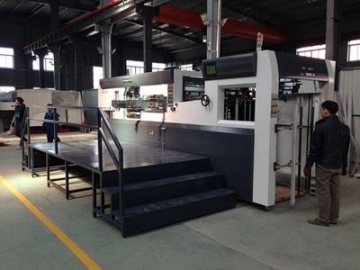

Automatic Flatbed Die Cutting Machine with Stripping (Die Cutter)

Automatic Flatbed Die Cutting Machine with Stripping (Die Cutter)
Automatic Flatbed Die Cutting Machine with Stripping (Die Cutter)
Automatic Flatbed Die Cutting Machine with Stripping (Die Cutter)
Kostenvoranschlag erhalten

The automatic die cutter designs with stripping function to remove the wastes automatically. It is applicable for cutting and creasing carton, paperboard, and other packaging materials. The HMI for the die cutter displays the warning information, frame locking information, and digital mould pressing information. So, the operation of the automatic die cutting machine is quite easy.

Thanks to the oil pump equipped with cycle oil cooling system from Taiwan, the lifespan of the parts for the paper die cutting equipment is effectively prolonged. For high reliability, we particularly employ high-rank electronic components and industrial cooling system for the construction of the high speed die cutting machine.

Features
  • The automatic die cutting machine is designed with four paper suckers. The paper sucking angle can be adjusted based on the paper deforming conditions.
  • The blowing device at two sides of the machine is conducive to rapid paper separation and smooth paper feeding. The maximum paper feeding speed is 7500 pieces per hour.
  • Engineered with special clutch, the paper feeder can work independently or together with the main machine, at any time.
  • The bent axle, worm gear, and the worm for the die cutting part and the main machine are made of high-grade alloy steel. In addition, the wallboard and the pedestal for the automatic die cutting machine are produced from resin sand nodular cast iron. The nodular cast iron is processed with Meehanite technology for outstanding stability.
  • The movable platform is constructed with pneumatic locking device. Simple and convenient, the pressure can be controlled through the operation on the button.
  • To bring more convenience to the users, the automatic die cutting machine can be equipped with stripping device with upper, middle and bottom frame. The frames can be moved by the electric control lifting device.
  • For high productivity, the paper collector is installed with paper conveying device supporting non-stop paper collection.
  • Apart from the oil cooling system, the torsion limiter and the specially designed gripper bar and the chain ensure accurate and high-speed operation of the carton die cutting machine.
Specification
Specifications/models
BL1050 die cutting
BL1050S
BL1050F
BL1050 die cutting and stamping
BL1050FL
Max. Paper size 1050x740mm 1050x740mm 1050x740mm 1050x740mm 1050x740mm
Min. Paper size 400x360mm 400x360mm 400x360mm 400x360mm 400x360mm
Paper thickness 80-2000gsm 80-2000gsm 80-2000gsm 80-2000gsm 80-2000gsm
Corrugated paper thickness ≤ 4mm ≤ 4mm ≤ 4mm ≤ 4mm ≤ 4mm
Max.speed 7500 sheets/h 7500 sheets/h 7500 sheets/h 7500 sheets/h 7500 sheets/h
Max. Stamping speed / / 6000 sheets/h 6000 sheets/h 6000 sheets/h
Max. hologram foil stamping speed / / / 4500 sheets/h 4500 sheets/h
Max. Pressure 300T 300T 300T 300T 300T
Min. Holding width 5 mm 5 mm 5 mm 5 mm 5 mm
Max. Punching size 1040x730mm 1040x730mm 1040x730mm 1040x730mm 1040x730mm
Max. Stamping size / / 1020x720mm 1020x720mm 1020x720mm
Puller shafts / / 3 4 3
Heating zone / / 12 zones 12 zones 12 zones
Die cutting accuracy +/-0.075mm +/-0.075mm +/-0.075mm +/-0.075mm +/-0.075mm
Hologram foil Stamping accuracy / / / +/-0.2mm +/-0.25mm
Power required 19kw 20kw 60kw 66kw 61kw
Total weight 14.5 T 16.5T 17T 17.5T 17.5T
Machine size 6.1x4x2.1m 7x4x2.1m 7x4x2.1m 7x4x2.1m 7x4x2.1m
