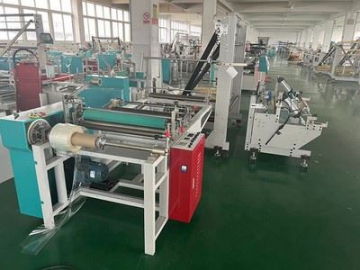

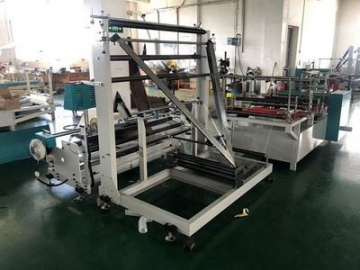

Film Folding Rewinding Machine, SZS
Kostenvoranschlag erhalten
This Film folder rewinder is suitable for OPP, PP, PE, CPP and other printing or non-printing plastic film folding and rewinding.
Features
- The unwinding and rewinding motors operate synchronously, ensure the output stable and smoothly.
- Unwind adopts magnetic powder brake control.
- Rewind adopts magnetic powder clutch control.
- Rewinder adopts two photocells for web-guiding.
- With the functions of Bottom gusset and double adhesive tape applying.
- The main machine speed adopts inverter regulator.
Optional
- Pearlized Film Inserting & Ultrasonic Knurling Device
- Meter Counter
- Air Shaft
- Waste Film Trimming Device
Specification
| Model | SZS-600 | SZS-700 | SZS-800 | SZS-1000 |
| Max.Unwind Width | 1200mm | 1400mm | 1600mm | 2000mm |
| Max.Rewind width | 600mm | 700mm | 800mm | 1000mm |
| Max.Web Diameter | 500mm | 500mm | 500mm | 500mm |
| Rewind Speed | 80m/min | 80m/min | 80m/min | 80m/min |
| Heater Power | 200W | 200W | 200W | 200W |
| Ultrasonic Power | AC1000VA | AC1000VA | AC1000VA | AC1000VA |
| Power Supply | AC220V | AC220V | AC220V | AC220V |
| Total Power | 2.5KW | 2.7 KW | 3KW | 3KW |
| Overall Dimension(Film Folder) | 1490×1520×1370mm | 1590×1720×1630mm | 1700×1920×1780mm | 1890×2200×2100mm |
| Overall Dimension(Single Folder Rewinder) | 1880×820×1200mm | 1880×920×1200mm | 1880×1020×1200mm | 1880×1220×1200mm |
| Overall Dimension(Double Folder Rewinder) | 2320×820×1200mm | 2320×920×1200mm | 2320×1020×1200mm | 2320×1220×1200mm |
