Paper Roll Rewinding Machine, FJ-J

Paper Roll Rewinding Machine, FJ-J
Paper Roll Rewinding Machine, FJ-J
Paper Roll Rewinding Machine, FJ-J
Paper Roll Rewinding Machine, FJ-J
Kostenvoranschlag erhalten

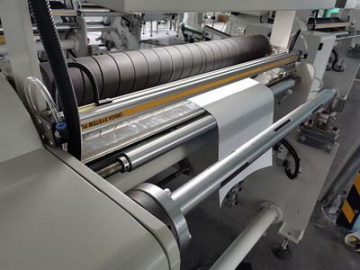

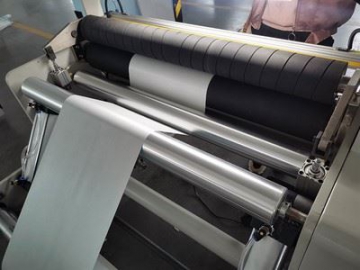

The paper roll rewinding machine is specially offered for cutting and winding paper and film. It is particularly suitable for hard core paper, soft core paper, non-core paper, as well as the small roll paper, such as gift roll paper, advertisement paper, wall paper, and some others.

Features
  • FJ800C/1050C/1250C rewinding machine is specialized in rewinding all kinds of paper, OPP film, holographic film, Bopp film, non-woven, aluminum laminated films to small roll. Such as gift paper, self-adhesive, table covers, wallpaper.
  • Final roll can be with hard paper core and soft core or coreless.
  • PLC controlled, HMI and imported servo motor for length setting, automatic tension control, machine is easy to operate.
  • Finished roll wrapping machine is also available.
Specification
Model FJ800C/1050C/1250C
Max. width 762mm/1016mm/1200mm
Max. Rewinding diameter 150mm
Max.Unwinding diameter 650mm
Unwinding airshaft diameter 3”
Max. Machine Speed 160m/min
Rewinding Speed If final length is 5m with paper core, the max speed is 9 rolls/min (Coreless and soft core ,speed will be faster) , It’s according to the material and worker’s speed). If you produce with coreless and soft paper core,you don’t need change any parts of machine。
Precision ±0.1%
Supply Power 3 Phase 380v 50HZ 5KW ( Can be customized)
Weight 600kg
