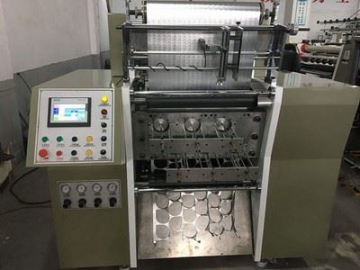

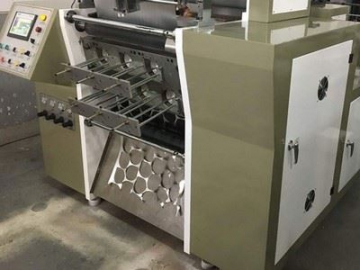

Aluminum Foil Lid Punching Machine, MQCB Manufacturer

Aluminum Foil Lid Punching Machine, MQCB

Kostenvoranschlag erhalten

Über uns: http://wity-machinery.com/2-3-1-automatic-slitting-machine4.html

The aluminum foil lid punching machine can punch not only aluminum foil and papers but also PE, PP, PET laminated aluminum foil. The punching mold is customized for minimizing the waste and has long service time. This is an ideal equipment for producing yogurt covers.

Features

The control system is integrated on the body, with a high degree of automation and flexible operation
The raw material base adopts analog photoelectric control automatic deviation correction system
This machine has the function of automatically marking up to the number of times, which is convenient to operate

Specification

Model	MQCB-320	MQCB-620
Cutting material	Aluminum foil, plastic film,paper (0.035~0.2mm)
Cutting effective size	350*300mm	580*320mm
Mechanical speed	120times/min
Max speed	100times/min
Unwinding diameter	¢600mm (3 inch air shaft)
Traction motor	0.75kw frequency convention motor
Mold driven motor	3.7kw frequency convention motor
Length control motor	3kw servo motor
Driven style	synchronous belt
Precision	± 0.5mm
Web-guiding accuracy	± 0.5mm 120mm
Guiding roller	¢ 100x350mm hard AL alloy HV700	¢ 100x620mm hard AL alloy HV700
Mechanical structure	40mm thickness steel plate
Working power	380V/3P/50Hz 5 wires
Total power	About 6kw	About 8kw
Machine weight	About 1500kg	About 2000kg
Overall dimension	2000X1400X1700mm	2400X1700X1700mm
