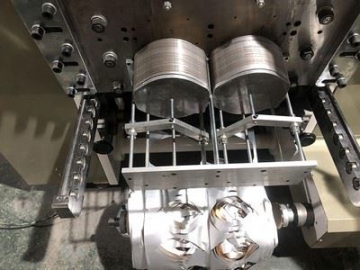

High Precision Aluminum Lids Die Cut Punching Machine (IML Puncher) MQGB-B

High Precision Aluminum Lids Die Cut  Punching Machine (IML Puncher) MQGB-B
High Precision Aluminum Lids Die Cut  Punching Machine (IML Puncher) MQGB-B
Kostenvoranschlag erhalten

The high precision IML punching machine is designed for punching aluminum foil lids along with PE, PP, and PET laminated aluminum foil. Its punching mold is specially designed to minimize scrap and increase longevity.

Specification
Model
MQCB-320B
MQCB-620B
Cutting material Aluminum foil, plastic film, paper (0.035~0.2mm)
Cutting effective size 350*300mm 580*320mm
Mechanical speed 180times/min
Max speed 150times/min
Unwinding diameter ¢600mm (3 inch air shaft)
Traction motor 0.75kw frequency convention motor
Mold driven motor 3.7kw frequency convention motor
Length control motor 3kw servo motor
Driven style synchronous belt
Precision ± 0.5mm
Web-guiding accuracy ± 0.5mm 120mm
Guiding roller ¢ 100x350mm hard AL alloy HV700 ¢ 100x620mm hard AL alloy HV700
Mechanical structure 40mm thickness steel plate
Working power 380V/3P/50Hz 5 wires
Total power About 6kw About 8kw
Machine weight About 1500kg About 2000kg
Overall dimension 2000X1400X1700mm 2400X1700X1700mm
