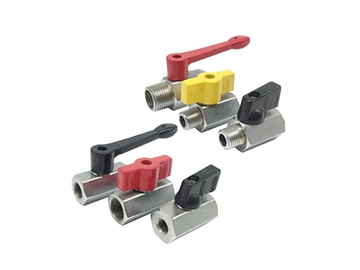

NSF zertifizierter Mini Kugelhahn - Edelstahl, 1-teiliger Kugelhahn mit Sechskant-Profil
Kostenvoranschlag erhalten
- Gewindeart: Innengewinde x Innengewinde oder Innengewinde x Außengewinde
- Betriebsdruck: 1000 psi für 1/8" bis 3/8", 800 psi für 1/2"
- Temperaturbereich: von -4 °F bis 250 °F (von -20 °C bis 120 °C)
- Material: 316 Edelstahl Gehäuse und Verschlusskappe
- Zinklegierung-Griff: Flügelgriff, Knebelgriff, Hebelgriff
| Pos. | Bauteil | Material |
| 1 | Gehäuse | 316 Stainless Steel |
| 2 | Sitz | PTFE |
| 3 | Kugel | 316 Stainless Steel |
| 4 | O-Ring | Viton |
| 5 | Verschlusskappe | 316 Stainless Steel |
| 6 | Spindel | 316 Stainless Steel |
| 7 | untere Dichtung auf der Spindel | PTFE |
| 8 | obere Dichtung auf der Spindel | PTFE |
| 9 | Schraube | 304 Stainless Steel |
| 10 | Handhebel | Zinc Alloy |
| Mini Kugelhahn mit Flügelgriff, Edelstahl | Inch/Metric(mm) | |||||
| Bestellnr. | Größe | d IN(mm) | A IN(mm) | B IN(mm) | C IN(mm) | H IN(mm) |
| 1000SMBV12-WH | 1/8'' F x F | 0.32'' (8) | 1.79''(45.5) | 0.85'' (21.5) | 0.51'' (13) | 1.24'' (31.5) |
| 1000SMBV25-WH | 1/4'' F x F | |||||
| 1000SMBV33-WH | 3/8" F x F | 1.73''(44) | ||||
| 800SMBV50-WH | 1/2" F x F | 0.39'' (10) | 2.11''(53.5) | 1'' (25.5) | 0.59'' (15) | 1.32'' (33.5) |
| 1000SMBV12M-WH | 1/8'' M x F | 0.32'' (8) | 1.79''(45.5) | 0.85'' (21.5) | 0.51''(13) | 1.24''(31.5) |
| 1000SMBV25M-WH | 1/4'' M x F | |||||
| 1000SMBV33M-WH | 3/8" M x F | 1.73''(44) | ||||
| 800SMBV50M-WH | 1/2" M x F | 0.39'' (10) | 2.22'' (56.5) | 1'' (25.5) | 0.59'' (15) | 1.32''(33.5) |
| 1000SMBV12MM-WH | 1/8'' M x M | 0.32'' (8) | 2.17'' (55) | 0.85'' (21.5) | 0.51'' (13) | 1.24'' (31.5) |
| 1000SMBV25MM-WH | 1/4'' M x M | |||||
| 1000SMBV33MM-WH | 3/8" M x M | 2.22''(56.5) | ||||
| 800SMBV50MM-WH | 1/2" M x M | 0.39'' (10) | 2.64'' (67) | 1''(25.5) | 0.73''(18.5) | 1.32'' (33.5) |
| Mini Kugelhahn mit Knebelgriff, Edelstahl | ||||||
| Bestellnr. | Größe | d IN(mm) | A IN(mm) | B IN(mm) | C IN(mm) | H IN(mm) |
| 1000SMBV12-TH | 1/8'' F x F | 0.32'' (8) | 1.79''(45.5) | 0.85'' (21.5) | 0.51'' (13) | 1.24'' (31.5) |
| 1000SMBV25-TH | 1/4” F x F | |||||
| 1000SMBV33-TH | 3/8" F x F | 1.73''(44) | ||||
| 800SMBV50-TH | 1/2" F x F | 0.39'' (10) | 2.11''(53.5) | 1'' (25.5) | 0.59'' (15) | 1.32'' (33.5) |
| 1000SMBV12M-TH | 1/8'' M x F | 0.32'' (8) | 1.79''(45.5) | 0.85'' (21.5) | 0.51''(13) | 1.24''(31.5) |
| 1000SMBV25M-TH | 1/4''M x F | |||||
| 1000SMBV33M-TH | 3/8" M x F | 1.73''(44) | ||||
| 800SMBV50M-TH | 1/2" M x F | 0.39'' (10) | 2.22'' (56.5) | 1'' (25.5) | 0.59'' (15) | 1.32''(33.5) |
| 1000SMBV12MM-TH | 1/8'' M x M | 0.32'' (8) | 2.17'' (55) | 0.85'' (21.5) | 0.51'' (13) | 1.24'' (31.5) |
| 1000SMBV25MM-TH | 1/4'' M x M | |||||
| 1000SMBV33MM-TH | 3/8" M x M | 2.22''(56.5) | ||||
| 800SMBV50MM-TH | 1/2" M x M | 0.39'' (10) | 2.64'' (67) | 1''(25.5) | 0.73''(18.5) | 1.32'' (33.5) |
| Mini Kugelhahn mit Hebelgriff, Edelstahl | ||||||
| Bestellnr. | Größe | d IN(mm) | A IN(mm) | B IN(mm) | C IN(mm) | H IN(mm) |
| 1000SMBV12-LH | 1/8'' F x F | 0.32'' (8) | 1.79''(45.5) | 0.85'' (21.5) | 0.51'' (13) | 1.24'' (31.5) |
| 1000SMBV25-LH | 1/4'' F x F | |||||
| 1000SMBV33-LH | 3/8" F x F | 1.73''(44) | ||||
| 800SMBV50-LH | 1/2" F x F | 0.39'' (10) | 2.11''(53.5) | 1'' (25.5) | 0.59'' (15) | 1.32'' (33.5) |
| 1000SMBV12M-LH | 1/8'' M x F | 0.32'' (8) | 1.79''(45.5) | 0.85'' (21.5) | 0.51''(13) | 1.24''(31.5) |
| 1000SMBV25M-LH | 1/4'' M x F | |||||
| 1000SMBV33M-LH | 3/8" M x F | 1.73''(44) | ||||
| 800SMBV50M-LH | 1/2" M x F | 0.39'' (10) | 2.22'' (56.5) | 1'' (25.5) | 0.59'' (15) | 1.32''(33.5) |
| 1000SMBV12MM-LH | 1/8” M x M | 0.32'' (8) | 2.17'' (55) | 0.85'' (21.5) | 0.51'' (13) | 1.24'' (31.5) |
| 1000SMBV25MM-LH | 1/4'' M x M | |||||
| 1000SMBV33MM-LH | 3/8" M x M | 2.22''(56.5) | ||||
| 800SMBV50MM-LH | 1/2" M x M | 0.39'' (10) | 2.64'' (67) | 1''(25.5) | 0.73''(18.5) | 1.32'' (33.5) |
