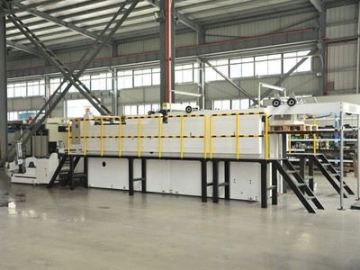

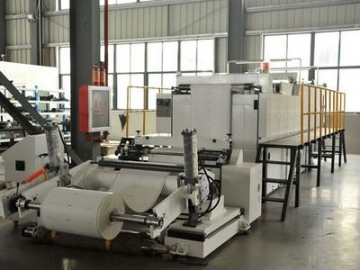

Computerized Sheet Cutting Machine (with Mark Tracking Unit) HQD-1100CS-3

Computerized Sheet Cutting Machine (with Mark Tracking Unit) HQD-1100CS-3
Computerized Sheet Cutting Machine (with Mark Tracking Unit) HQD-1100CS-3
Computerized Sheet Cutting Machine (with Mark Tracking Unit) HQD-1100CS-3
Kostenvoranschlag erhalten
Über uns: http://wity-machinery.com/1-9-sheet-cutting-2.html

The computerized Sheet Cutter is suitable for width-ways cutting and length-ways cutting (even peeling of) the reel type material into sheet type. The materials could be golden and silver paperboard, plain 'rainbow' paper, holography paper, white cardboard, craft paper, or plastic sheet, etc.

Features
  • Center computer control (PLC), person-machine interface operation, dynamic display.
  • Imported servo driving system.
  • German automatic identifying-markings photoelectric switch to ensure cutting accuracy.
  • With advanced control mode, this machine centrally controls the speeds of the main motor, servomotor and feeding motor through computer so as to achieve the purpose of synchronous operation.
  • High-precision cutting, high speed, convenient charging, and orderly heaping etc.
Specification
Model HQD-1100CS-3
Max. cutting width 1100mm
Max. unwinding diameter 1600mm
Cutting length 450-1400mm
Max. cutting speed ≤60m/min
Cutting accuracy ±0.15-0.2mm
Stacking height 1200mm
Applicable paper 70-350g/m2
Power 15kW
Overall dimensions 11000×3100×2200mm
Verwandte Produkte
Rotary Sheet Cutting Machine
Rotary Sheet Cutting Machine

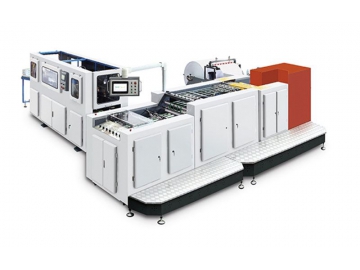

DTCP-A4-5 Paper Sheet Cutting & Wrapping Machine
