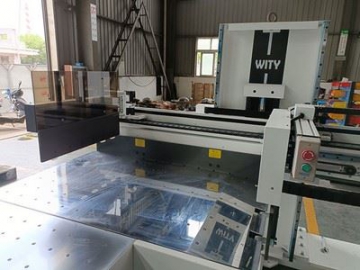

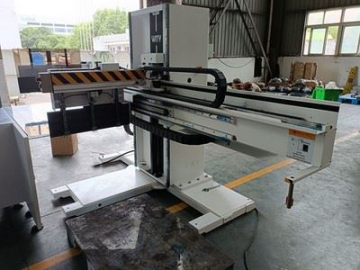

Paper Unloader

Kostenvoranschlag erhalten

Über uns: http://wity-machinery.com/1-7-5-paper-unloader.html

Automatic paper unloader is automatic identification to paper stack size and position, automatic paper feeding and unloading functions. It can unload cutting products from the working table to the setted base quickly and neatly.

Features

The paper unloader has the function of automatic paper feeding, unloading and paper stacking. It is capable of unloading the paper from the worktable and placing it at specific location.
The whole process of paper feeding and unloading is accurate and effective, reducing labor intensity, improve work efficiency, the finished paper stack is ready to next step of production process at any time;
The electric system adopts programmable controller from Schneider (France) and Siemens(Germany), to monitor all electrical and mechanical;
High performance reducer motor from German is with smooth movement and low noise;
Equipped with Taiwan linear guide and oil pump, import Italy hydraulic system elements.

Specification

Model	unit	1050
Table size	mm	900*1570
Max.Loading Size	mm	860*1050
Min.Loading Size	mm	300*400
Max. Loading Height	mm	165
Max. Stacking Height	mm	1600
Max.Height of table	mm	150
Max.Loading Weight	kg	350
Air demand	bar	6
Air Pressure	bar	6
Main Power	kw	5.5
Air supply Consumption	L/min	3
Roted voltage	V	380/220
Loading Time	Sec	20-30
Compressed Air	Pa	3
Max.thickness of paper	g	50
Noise Index	db	60
Gross Weight	kg	1650
Machine Size(LWH)	mm	328019102100
Packing Size(LWH)	mm	340020602380
Lifting adopts hydraulic transmission, smooth movement, low noise, long life and low maintenance cost
suggested that the power of single air compressor is 2.2KW
