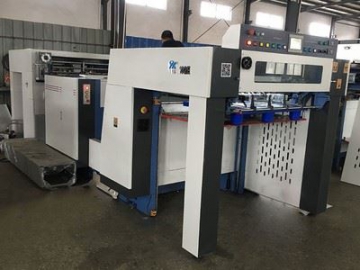

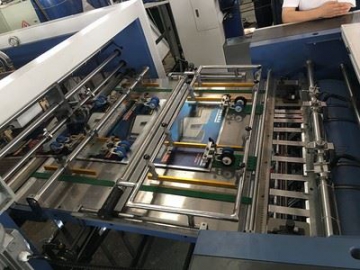

Automatic Carton Refraction Embossing Machine
Kostenvoranschlag erhalten
The automatic carton refraction embossing machine adopts cylinder-to-cylinder structure which ensures steady pressure. The pressure can be easily adjusted according to paper thickness in high precision. It is designed with quick pre-heating system and with temperature control ranges from 80℃to 150℃. The embossing equipment can be used for both embossing and ink-free printing. It is energy saving and odorless. The embossing patterns can be specially made for customers.
Application
The embossing equipment is ideal for use in making the following types of products.
- Packing boxes for cosmetics, gift, medicines, cigarette, wine, tea, and handbags, etc.
- Cards: greeting cards, invitation cards, special occasion cards, playing cards, etc.
- Picture: religious figures and themes, work of art, etc.
Specification
| Model | YW-1020 |
| Max paper size | 1020×720 mm |
| Min paper size | 540×390 mm |
| Max embossment size | 1000×700 mm |
| Paper Thickness | 80-900 g/m |
| Max speed | 3600 r.p.h |
| Plate size | 0.5×780×1020 mm |
| Rubber cloth | 1.8×910×1020 mm |
| Total power | 18 kw |
| Weight | 5500 kg |
| Machine size | 4500×1850×1750 mm |
