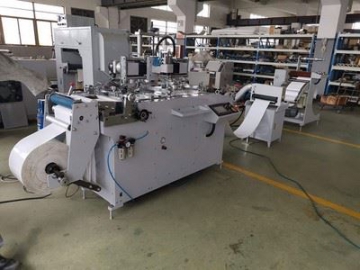

Reel Type Silk Screen Printing Machine, WQ-320

Reel Type Silk Screen Printing Machine, WQ-320
Reel Type Silk Screen Printing Machine, WQ-320
Reel Type Silk Screen Printing Machine, WQ-320
Kostenvoranschlag erhalten

This is a reel type silk screen printing machine, material goes in rolls, and machine with inline dyer.

Features
  • Material feeding is controlled by CNC servo motor
  • Main drive parts adopt pneumatic device
  • The web-guiding is tracked by photoelectric tracking system
  • This kind of label printing converting machinery is characterized with high accurate color registering, steady material-feeding, automatic counting and alarming, convenient adjusting etc.
Application

This machine is extensively used for printing, drying and rewinding reel materials, such as PVC, OPP, Dacron, anti-sake label, adhesive tape, etc.

Specification
Printing speed: 10-50t/min
Max.unwinding diameter: 450mm
Max.web width : 320mm
Max. die-cutting width: 300mm
Max. die-cutting length: 320mm
Positioning accuracy: ±0.15mm
Main motor power : 1200w
Oven power: 4100w
Main machine size: 2.4(L)x0.95(W)x1.5(H)(m)
Oven size: 1.75(L)x0.6(W)x1.8(H)(m)
Machine weight: about1100kg
