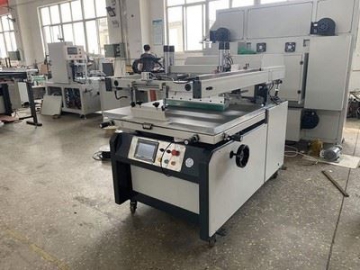

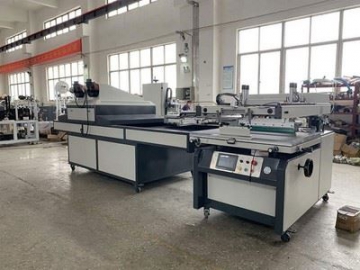

Manual Screen Printing Machine, WPKB
Kostenvoranschlag erhalten
The screen printing machine comes with frequency control, and stepless speed regulation, which helps ensure stable running. Moreover, the screen printing machine features with vacuum absorption, micro adjustment and honeycombed aluminum alloy stainless steel working table, which can move smoothly up and down, sideways and back and forth. It has three operation modes, i.e. one-shot mode, manual mode, and continuous mode. Controlled by computer, the screen printing machine has advantage of reliable operation, low failure rate and long service life.
Specification
| Model and Size | WPKB-6090 | WPKB-4060 | WPKB-14010 | WPKB-9880 |
| Max printing area(mm) | 600×900 | 400×600 | 1400×1000 | 1000×800 |
| Max printing speed(p/h) | 1200 | 1200 | 800 | 900 |
| Table size(mm) | 800×1000 | 600×700 | 1500×1200 | 1100×1000 |
| Table adjustment of longitudinal and horizontal (mm) | ±5mm | ±10mm | ±5mm | ±5mm |
| Power(KW) | 3.0 | 3.0 | 3.0 | 3.0 |
