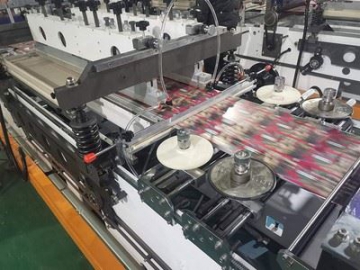

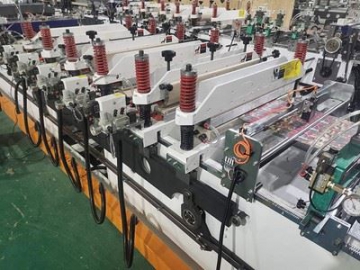

Heavy Duty Multifunctional Laminated Pouch Bag Making Machine, 600C CS Manufacturer

Heavy Duty Multifunctional Laminated Pouch Bag Making Machine, 600C CS

Kostenvoranschlag erhalten

Über uns: http://wity-machinery.com/2-2-sealing-bag2.html

This multifunctional laminated film pouch bag making machine is for making 3 side sealing, zipper bag , 4 side sealing bag, stand up pouch bag (doypack bag) and center sealing bag.

Features

Main electric scheme: 4 servo motor for traction, with PLC used Panasonic from Japan., Touch Screen from Taiwan; main driving is alternating current with YASKAWA from JAPAN Transducer, automatic constant tension for unwinding.
Thermal-sealing knife’s quantity of heat:
Vertical-sealing adopts 5 groups for heating, cooling fluctuation from up and down;
Vertical sealing adopt 1group for center sealing heating and zipper;
Bottom sealing adopt 3 groups heating, 1 group for cooling .
The type of control system: SSF-Ⅱ High speed laminating film bag making machine control system

Specification

Speed of bag making	40-140pcs/min
Line speed	≤30 m/min (decided according the material)
Max width of bag	580mm
Max height of bag	380mm x Skip (the skip ≤6, which mean the max width size of bag is 380x6=2280mm )
Dimension of roll material	ф6001200mm (diameter web-width)
Accuracy of orientation	≤± 0.5mm
Quantity of temperature heating	20
Bound of temperature	0-300 ℃
Total power	52kw
Overall dimension	(LWH) 12500×2450×1920mm
Weight of machine	5900 kg
Color	white color of machines, red color for cover and door
Air compressor	6HP
