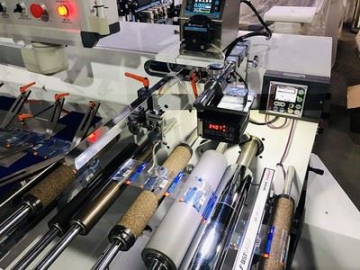

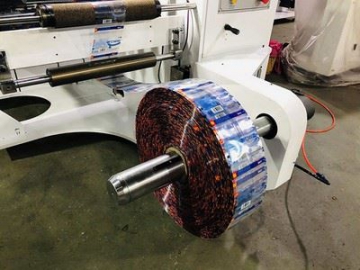

Shrink Sleeve Label Seaming Machine (Mold-less Type), GSHZ300C

Kostenvoranschlag erhalten

Über uns: http://wity-machinery.com/2-2-4-shrink-sleeve-label-seaming-machine.html

This shrink sleeve seaming machine is designed for gluing / seaming single layer PVC/PET roll to produce various shrink sleeve label such as beverage label, battery sleeve, pens sleeve, etc. This stand alone machine operates at 300 meter per minute and forms the sleeves via an adjustable forming section. The machine is available in 300mm and or other customized size lay-flat models. It features fast changeover rewind and unwind air shafts. It has unwind perforation & edge guide for solvent needle sold for top converting practices.

Features

It has two gluing system with alternative using.

It is equipped with movable controller

Mold-adjustable system easy for different sizes changing.

It has ultrasonic EPC Web guiding system, which provides the accuracy shrink sleeve seaming position.

It has stroboscope and photo sensor to help monitoring the sealing quality.

It can be equipped with vertical continuous perforation device and rewind oscillation device

Specification

Forming Width	70~300mm
Unwinding diameter	500mm
Rewinding diameter	700mm
Mechanical speed	330m/min
Max seaming speed	300m/min
Material Core Inner Diameter	76 / 3"
Total power	5.5kw
Voltage	380v/50hz
Machine weight	1800kg
Overall dimension	2950×1550×1700mm
