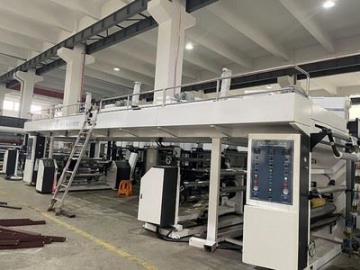

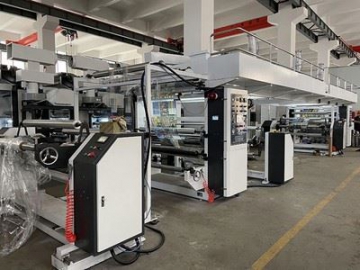

This dry type laminating machine is highly automated and easy to operate for high quality and high yield laminating applications. The heating oven uses a constant temperature hot air drying system and the heating roll utilizes an internal heated oil system.

Features
  • Double inverter speed adjustment.
  • Anilox roller supply glue.
  • Photocell unwinding rectifier.
  • Unwinding tension controlled by magnetic powder brake
  • Double layer pneumatic type open heat oven
  • Four segment constant temperature hot air drying
  • Heated oil laminating roll
Specification
Technical data
GF-800Q
GF-1100Q
Laminating width 800mm 1100mm
Diameter of unwinding 600mm 600mm
Diameter of rewinding 800mm 800mm
Max mechanical speed 160m/min 160m/min
Total power 105kw 115kw
Overall dimensions 10600X2300X3100mm 10600X2600X3100mm
Weight 7T 9T
Materia
Firs base material
OPP/BOPP 15~60um
PET 12~60um
PA 15~60um
Second material
PE/CPE/DPE 20~75um
Aluminum foil 7~20um
Paper 70~120gsm
