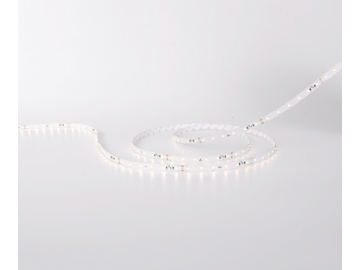

DS860 24V 10mm Exterior LED Strip Light 2.7W

DS860 24V 10mm  Exterior LED Strip Light 2.7W
DS860 24V 10mm  Exterior LED Strip Light 2.7W
DS860 24V 10mm  Exterior LED Strip Light 2.7W
DS860 24V 10mm  Exterior LED Strip Light 2.7W
DS860 24V 10mm  Exterior LED Strip Light 2.7W
Kostenvoranschlag erhalten
Eigenschaften
  • The maximum length of light strip with single-ended power supply is 40m, and the brightness is consistent at the beginning and the end;
  • The maximum length of light strip with single-ended power supply is 40m, and the brightness is consistent at the beginning and the end;
  • Lifetime is greater than 36,000 hours.
Technische Daten
Maße 40000×10×1.5mm(131.23´×0.39〞×0.07〞)
Schnittlänge 10LEDs/167mm
Eingangsspannung 24VDC
Eingangsstrom 0.114A/1m&/4.56A/40m
Typische Leistung 2.7W/m(0.8W/FT)
Max. Leistung 2.9W/m(0.9W/FT)
Biegedurchmesser >60mm(2.36inch)
Kupferfolie 4oz
Photo-electric parameters
Farbwiedergabeindex Farbtemperatur Lumens (m) Lichtausbeute(w) Energieeffizienzklasse
>80 1900K 194 72 A+
2300K 213 83 A+
2700K 227 89 A+
3000K 240 90 A+
3500K 243 90 A+
4000K 250 93 A+
5000K 250 93 A+
6000K 240 90 A+
>95 2700K 170 63 A+
3000K 185 69 A+
3500K 203 75 A+
4000K 203 75 A+
FS 2700K 118 44 A
3000K 128 47 A
4000K 158 59 A+
6000k 188 70 A+
