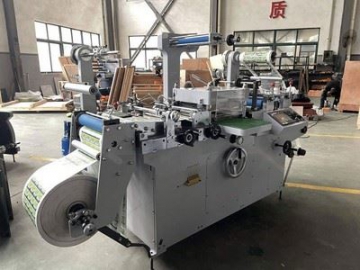

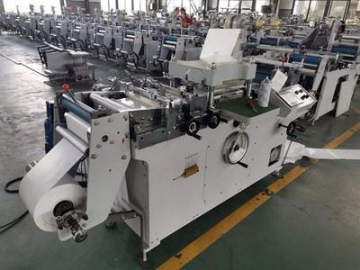

Label Die Cutting Machine, WQM-320

Label Die Cutting Machine, WQM-320
Label Die Cutting Machine, WQM-320
Label Die Cutting Machine, WQM-320
Label Die Cutting Machine, WQM-320
Kostenvoranschlag erhalten

This label die cutting machine is suitable for printed adhesive label die cutting, machine with sheet cutting function.

Features
  • Adopt high-precision flatten die-cutting system
  • Material towing and slice cutting are controlled by computer
  • Three photocell eyes do the web- guiding job.
  • Die-cutting, waste-collecting, cutting and rewinding (or sheetering) can be finished at one stroke.
Application
  • This type of converting machinery is suitable for die cutting adhesive paper, dacron label and laser hologram mark.
  • It is the ideal auxiliary equipment for flexo printing machine, silk screen printing machine, gravure printing machine and hologram mark printing machine.
Options
  • Punching system (for middle or side punching)
  • Hot-stamping system
  • Lamination system, can be installed in different position
Specification
Model
320 model
320G model
420 model
Die cutting speed: 20-125t/min 20-170t/min 20-170t/min
Max.unwinding diameter : 450mm 500mm 500mm
Max.web width : 320mm 320mm 420mm
Max.die cutting width: 300mm 300mm 400mm
Max.die cutting length: 290mm 300mm 400mm
Orientation accuracy: ±0.15mm ±0.1mm ±0.1mm
Total power: 3kw 3.5kw 4.5kw
Power supply: 220v±10% 220v±10% 380v
Machine weight: about1500kg about 1700kg about2300kg
Overall dimensions: 2.6(L)x0.95(W)x1.4(H)(m) 2.6(L)x0.99(W)x1.4(H)(m) 2.7(L)x1.05(W)x1.5(H)(m)
