High Speed Vest Bag Making Machine
Kostenvoranschlag erhalten

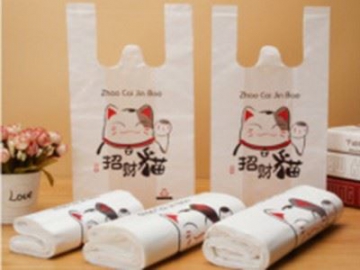

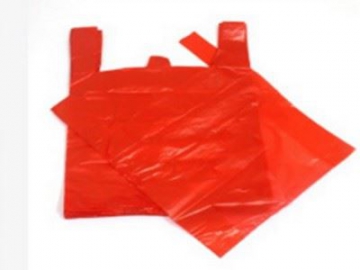

This machine is workable for material HDPE, LDPE, biodegradable materials to make blank or printed vest bag.
Machine with PLC control system, servo motor length positioning function. The process of material roll feeding, bottom sealing, sheeting, handle punching, delivery in one time.
Specification
Model | HS450×2 |
Max width of bag | 200-420×2mm |
Max length of bag | 320-600×2mm |
Thickness of bag | 0.008-0.1mm |
Bag making speed | 200-250pcs/min×2 |
Air compressor | 10P |
Total power | 16kw |
Supply voltage | Ac380V/50Hz |
Machine weight | 2500kg |
Dimensions | 6500×1600×1800mm |
