Hydraulic Thermal Laminator (with Slitting) QLFM-Y Manufacturer

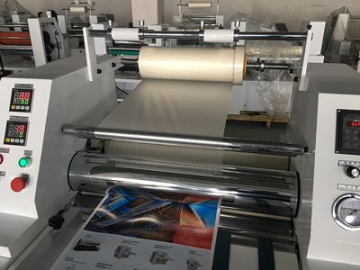

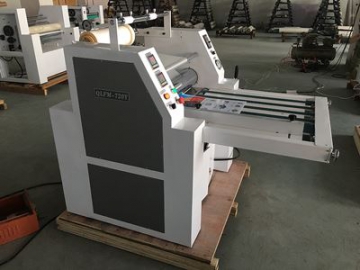

Hydraulic Thermal Laminator (with Slitting) QLFM-Y

Kostenvoranschlag erhalten

Über uns: http://wity-machinery.com/1-4-opp-film-8.html

This hydraulic thermal lamianting machine covers a small area, which is operated conveniently and runs fast. This laminator adopts pre-coated film as the material. It is widely used for lamination on the surface of window packing paper boxes, various books, maps, pictures, certificates, holographic cellophane etc. After the above products are laminated, they have the features of water-resistance, clear graphic arts and strong three dimensional sense.

Features

This laminating machine covers a small area and is convenient to operate, with a high speed
It offers such functions as automatic temperature-control and speed regulation, automatic conveying
As a substitute for splitting machine, it can slit several redundant rolls at one time

Application

This kind of converting machinery, adopting pre-coated film as the material, can be applied to single-sided and double-sided sheet laminating
It is widely used for laminating on the surface of window packing paper boxes, various books, maps, pictures, certificates, holographic cellophane etc.

Specification

Model	QLFM-720Y	QLFM-900Y	QLFM-1000Y	QLFM-1200Y
Max laminating width	650mm	850mm	980mm	1150mm
Laminating speed	0-20m/min	0-20m/min	0-20m/min	0-20m/min
Laminating temperature	60~130℃	60~130℃	60~130℃	60~130℃
Motor power	0.55 KW	0.75KW	0.75KW	1.1KW
Power of electric heater	2.4 KW	3.6KW	4.8KW	5.4KW
Voltage	380V	380V	380V	380V
Measurement(L×W×H)	1.15×1.1×1.4m	1.35×1.1×1.4m	1.55×1.25×1.45m	1.75×1.25×1.45m
Weight	380 kg	500 kg	580 kg	650kg
Pressure	0~4 Mpa	0~5 Mpa	0~10 Mpa	0~10 Mpa
