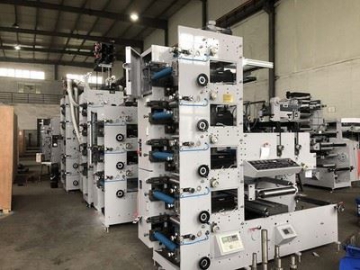

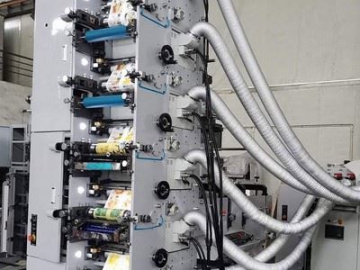

Label Flexographic Printing Machine, ZBS320 (Flexo Printer) Manufacturer

Label Flexographic Printing Machine, ZBS320 (Flexo Printer)

Kostenvoranschlag erhalten

Über uns: http://wity-machinery.com/1-15-label-printing-3.html

This flexographic printing machine is widely used in adhesive label printing and also plastic sleeve label printing.

Features

Adopt the ceramic anilox roller to transfer the ink.
Unwinding and rewinding are controlled by magnetic powder brake/clutch.
Each printing unit adopts 360°plate-adjustment.
Each printing unit is equipped with IR dryer
This printing machine equips one die-cutting station to complete printing and die-cutting at one stroke.
The ink rollers will be separated from the printing rollers, and keep running when the machine stops.
Main motor adopts imported inverter.

Application

This kind of converting machinery is widely used to print notes and top-grade adhesive labels for printing houses.
It can perform the processes of material-feeding, printing, varnishing, drying, laminating, die-cutting, rewinding and sheetering in one go.

Specification

Model	ZBS-320	ZBS-320G
Printing speed:	50m/min	55m/min
Printing colour :	5colours	5colours
Max. web width :	320mm	320mm
Max. printing width:	310mm	310mm
Max. unwinding diameter:	600mm	650mm
Max. rewinding diameter:	600mm	650mm
Printing perimeter:	175-355mm	175-355mm
Precision of chromatography:	±0.1mm	±0.1mm
Dimensions:	2(L)x1.1(W)x2.6(H)(m)	2.6(L)x1.1(W)x2.6(H)(m)
Machine weight:	about 2200kg	about 3100kg
