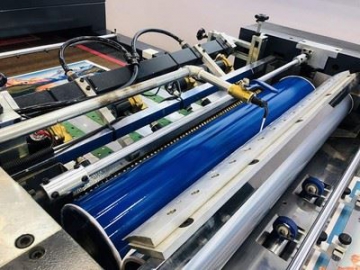

Automatic UV Coating Machine, SGZ-II-1200 (UV Varnishing Machine)

Automatic UV Coating Machine, SGZ-II-1200 (UV Varnishing Machine)
Automatic UV Coating Machine, SGZ-II-1200 (UV Varnishing Machine)
Automatic UV Coating Machine, SGZ-II-1200 (UV Varnishing Machine)
Automatic UV Coating Machine, SGZ-II-1200 (UV Varnishing Machine)
Automatic UV Coating Machine, SGZ-II-1200 (UV Varnishing Machine)
Kostenvoranschlag erhalten

The machine is used for UV coating on various types of paper (80-600gsm). Not only the gloss of the material, but also the moisture and abrasion-proof of the printed material will be largely improved. The machine has nice appearance, compact structure, reliable control of speed and temperature, and an ideal equipment for post-print treatment.

Working process

Paper automatic feeding, brush wheel and electric dust-cleaning, water-wash dust-cleaning, paper surface ink coating, IR drying, UV oil coating, UV drying, fan cooling, automatic collecting.

Standard Equipment
  • Automatic paper feeder
  • Water roller dust cleaning system
  • Base ink varnishing system
  • IR drying system
  • UV Varnishing system
  • UV Drying system
  • Automatic paper collector
Specification
Model SGZ-II-1200
Roller length 1250 mm
Suitable paper thickness 80-500gsm
Max.width of paper 1150x900mm
Power supply 380V/3P/50Hz
Total power 80kw
Infrared heating power 22kw
Ultraviolet heating power 3x8Kw or 2x8Kw
Overall dimension 19000x2000x1700mm
Machine weight 8000kg
  • Without air scraper device, applying to thick paper specially (250-500gsm)
  • UV Coating system, applying to thick paper specially (250-500gsm)
  • UV coating system with air scraper device, used in both thick and thin paper (80-500gsm)
